Cressi MC9 XS Compact Silver INT Regulator

Premium performance in a compact frame

This premiere travel regulator packs maximum performance into minimum space. A true featherweight second stage, the Cressi MC9 XS Compact Silver INT Regulator is built from lightweight techno-polymers to eliminate jaw fatigue. Easy to pack and easy to dive, the Compact includes dive/pre-dive Venturi switch for managing freeflow and maximizing performance at depth.

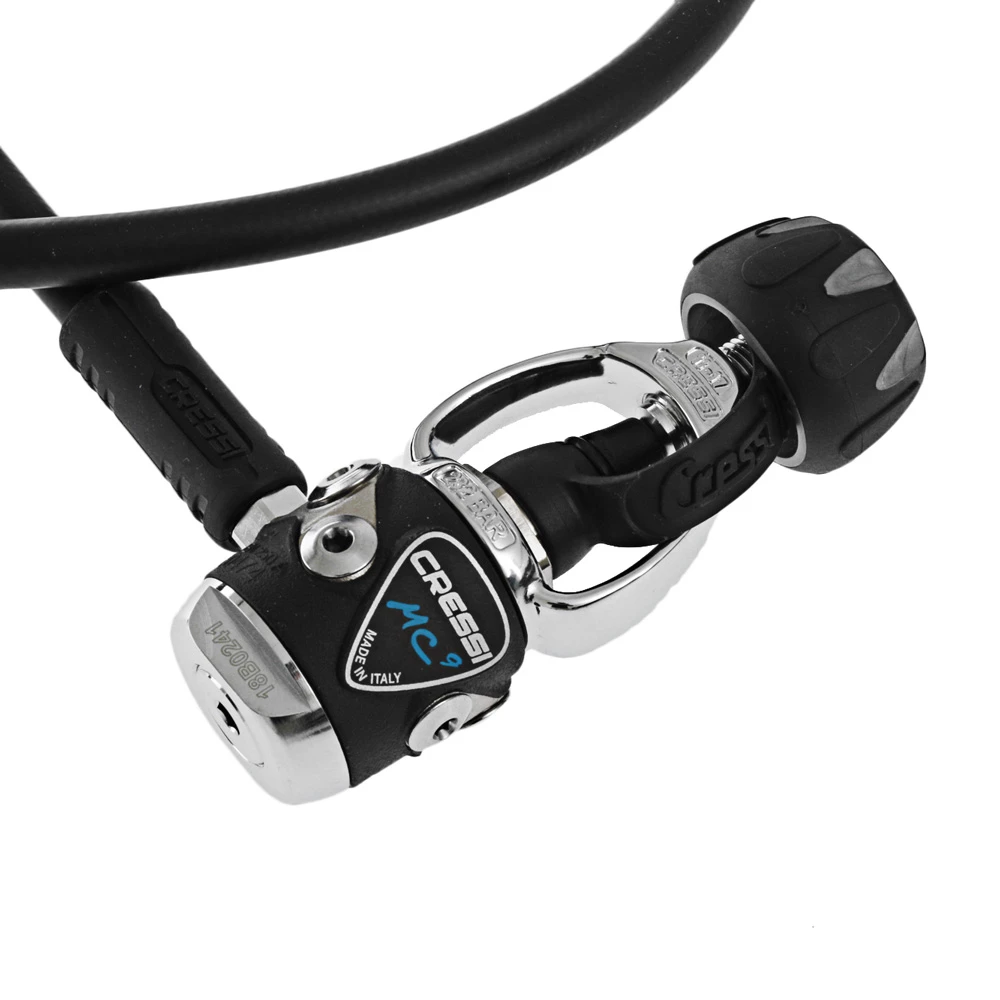

1st Stage MC9:
The 1st stage overcompensation diaphragm is ultra-modern, but at the same time easy to manage, very reliable and durable.

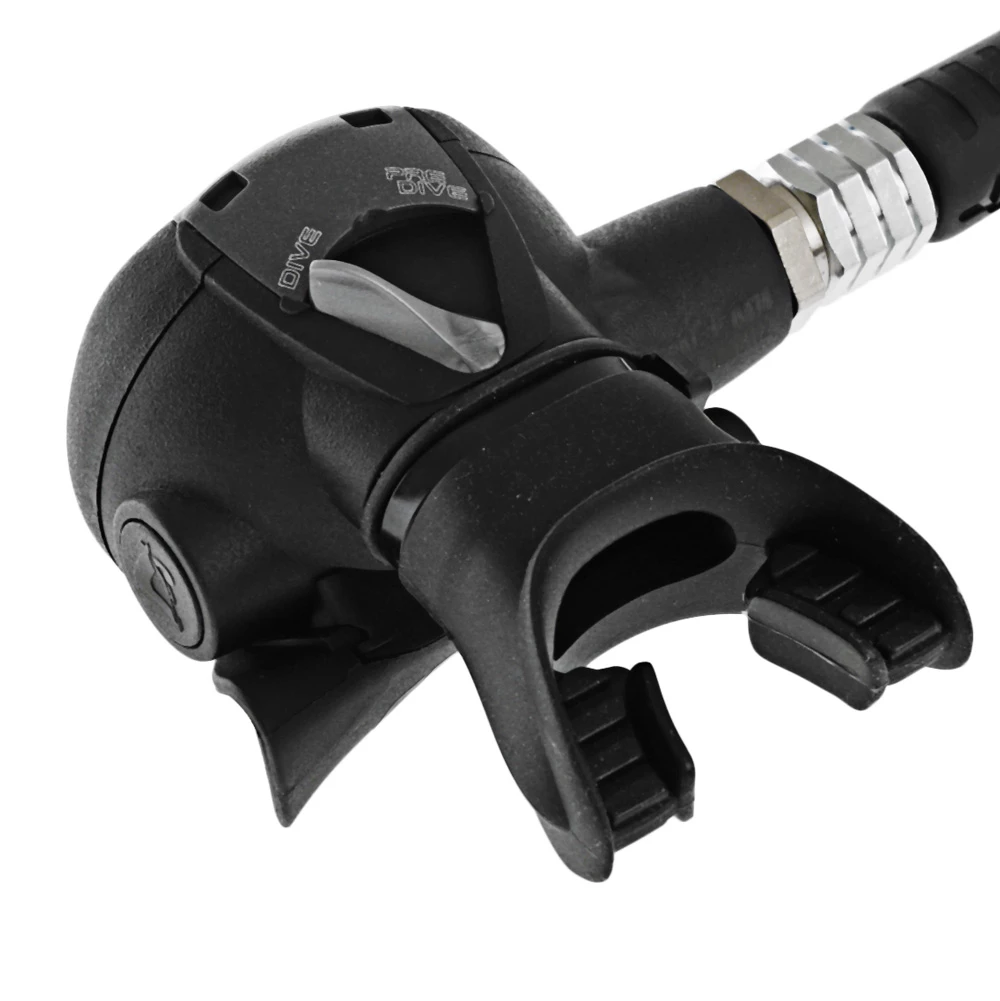

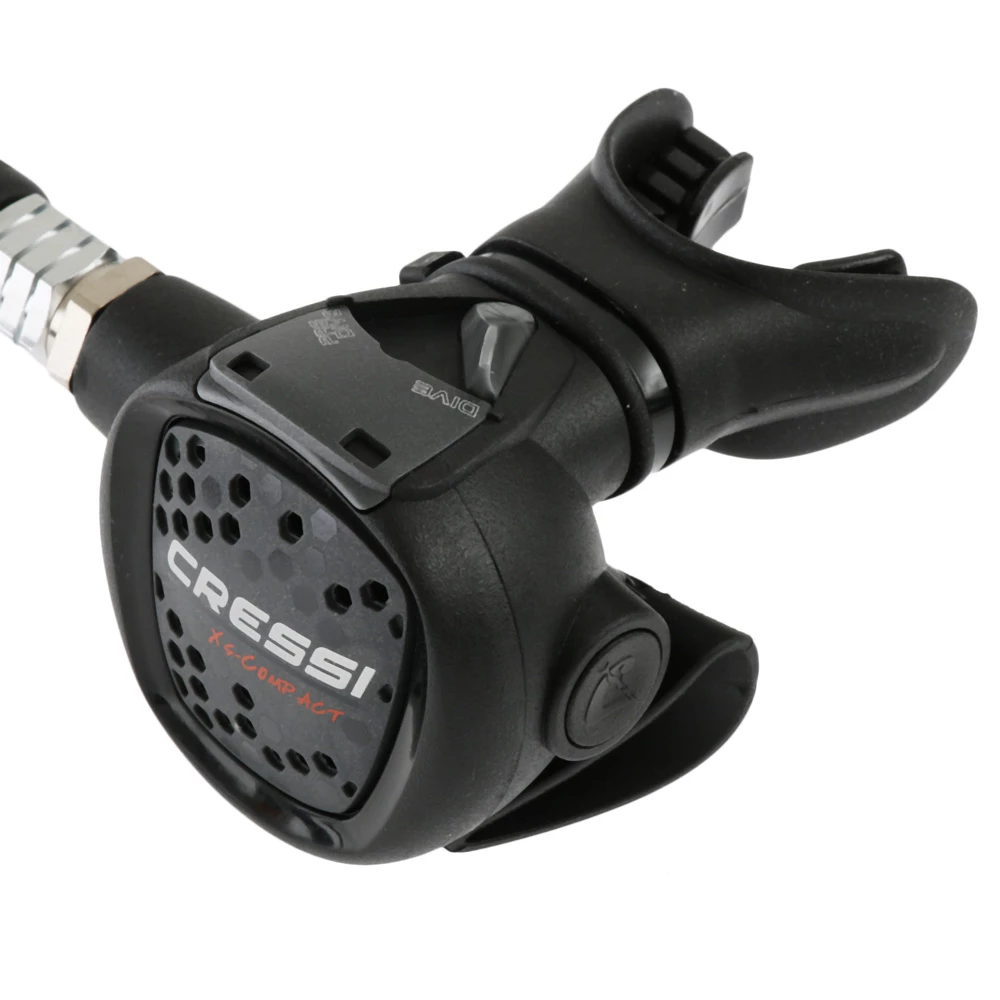

2nd Stage XS Compact:
New ultra-simplified monocoque second stage in ABS + elastomer, small (6 cm in diameter), very light (145 g) and robust, designed and built to have a minimum number of components. It is a smart buy due to its combination of performance, reliability, price and cost of maintenance.

1st Stage MC9 Features:

• Balanced diaphragm
• 2 outlets HP 7/16 UNF
• 4 outlets MP 3/8 UNF
• Service pressure: 300 bar (4350 psi) DIN version,
  232 bar (3365 psi) Yoke version
• Calibration pressure: 10 Bar
• Brass body Electroless Nickel plated
• High capacity conical filter electroless
  nickel plated
• Aisi 316 removable nozzle
• Hyper-balancing
• Anti-pressure drop pneumatic spring
• Setting spring: stainless steel
  with micropeening treatment
• Replaceable cylinder with anti-friction
  and anti-corrosion properties
• Elastomer protector
• Flow rate: 4500 l/min

2nd Stage XS Compact Silver Features:

• Downstream system
• Adjustable venturi effect
• Patented antifriction lever
• Big purge button
• Anti-scratch surface
• Bayonet-type cap holder with security lock
• Removable exhaust tee without tools
• Weight without hose :135 gr

Combination Performance:

• Model: HX 783051
• +Average cracking effort 6 mbar
• Average breathing effort 1 J/l
• Certification: EN250/2000
