Cressi Mini Console 2 Depth/Pressure Gauge Bar

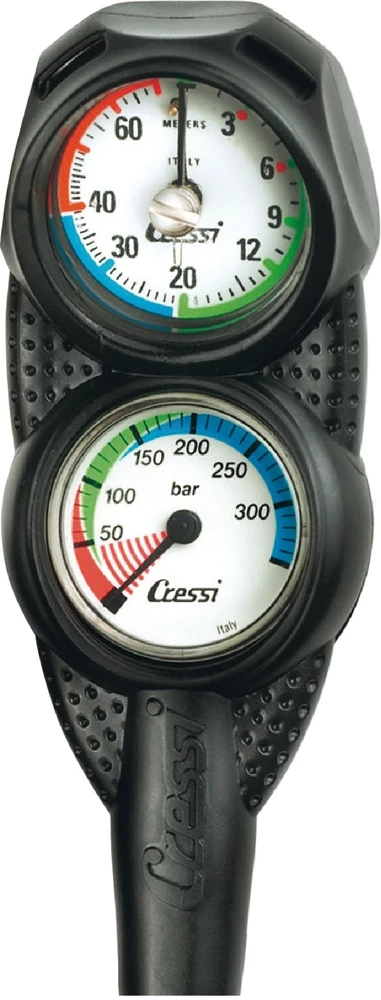

Mini Console PD2 is a small console that houses the Cressi
mini pressure gauge and a new, small, analogical depth
gauge. It is a high quality instrument with a
metal case and membrane functioning and has a
large parabolic scale. On the luminescent face the
first 12 metres, which correspond to the area of decompression
stops, are spaced out and perfectly legible. The end scale is at 70
metres (or 230 feet in the imperial version) and the face is
divided into three different coloured zones:  green up to 20
metres, light blue from 20 to 40 metres, red from 40 metres to the
end of the scale. The instrument has a maximum depth
indicator that blocks on the maximum depth reached during
the dive. The pressure and depth gauges are positioned in such a
way that both instruments can be read quickly and easily in any
conditions. At the end of the console, slightly to the sides, there
are two loops for fastening the instrument to the
jacket so that it does not hang down with the risk of catching and
damaging the environment.

Features:

Depth Gauge:

• Case material: chromium plated brass
• End scale: 70 metres or 230 feet
• Face: luminescent with coloured sections
• Functioning: membrane
• Special characteristics: maximum depth indicator, coloured
  sections
• Instrument diameter: 50 mm
• Instrument height: 24.5 mm

Mini pressure gauge:

• Case material: chromium plated brass
• End scale: 350 bar or 5000 psi
• Face: luminescent with coloured sections
• Pressure release valve: incorporated
• Instrument diameter: 50 mm
• Height of case: 14 mm
• Total instrument height: 17 mm
• Hose diameter: 11 mm

Miniconsole 2:

•     weight: 420 g (including HP hose)
