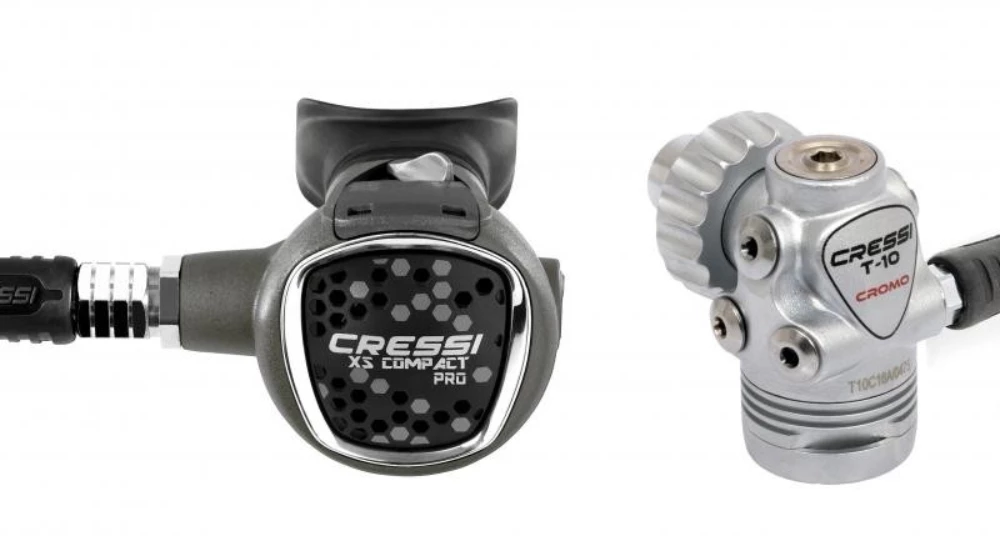

Cressi T10 SC Cromo Compact Pro Regulator With INT Hose

The T10-SEAL CHAMBER 1ST stage
is environmentally sealed, protecting it against icing in cold
water and against contamination from particulate matter in silty
conditions. When paired with the Master second stage, which
includes an
internal heat exchanger, this regulator is an excellent choice for
divers exploring the most extreme cold water environments.

1 STAGE T10SC:

1st stage T overcompensation diaphragm is ultra modern, but at
the same time easy to manage, very reliable and durable.

The thickness of the walls has been optimized to greatly reduce
its total weight (380 g).

A PVT coating protects the 1st stage from erosion, wear and
tear.

The T configuration enables better integration of the first
stage in the profile of the valve, and thus greater freedom of
movement of the diver’s head.

The mechanism works transversally, supplying air and filtering
potential particulates coming from the tank that manage to pass
through the filter, so that they do not directly affect the
valve.

1st stage  overcompensation diaphragm is ultra modern, but
at the same time easy to manage, very reliable and durable. The HP
saddle is made from AISI316 stainless steel.

The saddle composition, much harder than that of the traditional
fixed brass ones, prolongs its life.

It makes it more resistant to the deformation caused by metal
micro particles that can infiltrate from the tank. In addition to
that, in case of deterioration it can be substituted during
maintenance.

The polyurethane valve, very mechanically resistant, both to
oils and to hyperoxic mixtures.

The mechanism’s hyper-compensation guarantees a light increase
in the intermediate pressure as the pressure in the tank
decreases.

Therefore the regulator delivers the maximum level of
performance in the final phases of the dive, which are undoubtedly
the most critical.

Advanced research on internal air circulation and an exclusive
distribution chamber that channels the air volume directly to the
LP ports has reduced the minimum pressure drop levels in labored
breathing (0.5 bar), guaranteeing high performance in any
situation.

The T10 has an isolation and anti-freeze SC (Sealed Chamber) kit
that completely isolates the diaphragm and the spring from contact
with the water, making it ideal for use in extremely low
temperatures and dirty waters.

Highly effective flanged filter inserted without circlip.

Effective filtered surface area of 280 mm2 thanks to its special
design. 2 HP and 4 LP ports. Provided in INT (yoke) and DIN 300
bar.

The threading of the DIN version is in stainless steel instead
of brass to guarantee better resistance against drops or bumps.

2nd STAGE XS COMPACT PRO:

New ultra simplified monocoque second stage in ABS + elastomer +
STAINLESS STEEL, quite small (6 cm in diameter), very light (153 g)
and robust, designed and built to have a minimum number of
components.

It is a smart buy due to its combination of performance,
reliability, price and cost of maintenance. It is perfect for uses
requiring maximum reliability and as a travel regulator, given its
lightness. In the Pro version, the body of the integrated 2nd stage
incorporates particles to improve thermal conductivity and to
prevent freezing in cold environments.

CE Standardization for use in cold water (>4 degrees )
EN250/2000.

The specific calibration of the inhalation mechanism slightly
changes the air delivery as compared to the Ellipse series; the
feel and sensitivity of these models is exquisite, with an abundant
flow without needing to exploit the Venturi effect.

This feature adds a scant tendency to freeflow on the surface
and when positioning the equipment in the water, ideal for schools
and rentals, octopus and double regulator.

Nevertheless, the performance results put it at the top of the
highest range of regulators.

Asymmetrical perforation in the front cap.

The flow of the water starts to push the diaphragm
counter-clockwise so that its retraction is perfectly flat and the
cam progressively descends perpendicularly, independent of
conditions (currents, brisk movements, facial position, etc.).

Exhalation effort particularly reduced without having to reduce
the thickness of the diaphragm.

The design of the membrane retention system directs the 100%
channeled flow towards the nozzles of the bow, taking advantage of
a strong Venturi effect.

Also, it works to direct the bubbles away from the diver’s field
of vision.

Embedded membrane to avoid water infiltration in case of brisk
turns or jumps to enter the water.

Practically integrated purge button, between 80-400% larger than
that of any other regulator on the market to facilitate purging,
especially for beginning divers.

Cap system assembly by a 30 degrees bayonet turn, assuring a
very safe and simple assembly-disassembly, even while cleaning out
sand on the beach, without the need of tools.

Reduced ageing due to usage thanks to the casing finish,
achieved by applying a new technology in the mold that creates a
variegated look on a micro-texture of rounded profiles.

Features:

TECHNICAL FEATURES 1ST STAGE

Features:

• – Hyper balanced diaphragm
• – 2 HP 7/16 UNF outlets
• – 4 MP 3/8 UNF outlets
• – Operating pressure: DIN version 300 bar (4350 psi)
• international version 232 bar (3365 psi)
• – Set pressure: 10 bar
• – Satin chrome finish
• – High capacity conical filter in chemically
• nickel-brushed spherical bronze
• – Detachable AISI 316 steal nozzle
• – hyper balanced system
• – Anti pressure-drop pneumatic spring
• – Micropeen treated stainless steel calibration spring
• – High fluidity cylinder bore made of engineering plastic
• – Amount of air released: 4500 l/min
• – Weight (INT version): 660 gr
• – Weight (DIN version): 540 gr

TECHNICAL FEATURES 2ND STAGE

Features:

• – Downstream system
• – Adjustable Venturi effect
• – Patented antifriction lever
• – Thermoconductive technopolymer body
• – Big purge button
• – Anti-scratch surface
• – Bayonet-type cap holder with security lock
• – Stainless steel cover
• – Removable exhaust tee without tools
• – Weight without hose: 4.9 oz / 140 g
• COMBINATION PERFORMANCE
• – Average Cracking effort: 2.41 inwc / 6 mbar
• – Average breathing effort 1.1 J/l
• JACKETED HOSE
• extremely light and fl exible
• weight: 5.4 oz / 153 g
• CERTIFICATION EN250/2014
