Cressi T10-SC Master Regulator Set

Performance and reliability for true diving professionals

The Cressi T10-SC Master Regulator Set is truly a
product for true diving professionals, as it is known for its
performance, ergonomic reliability, and ease of maintenance. Easy
to use and easy to breathe with – great for diving in cold
waters.

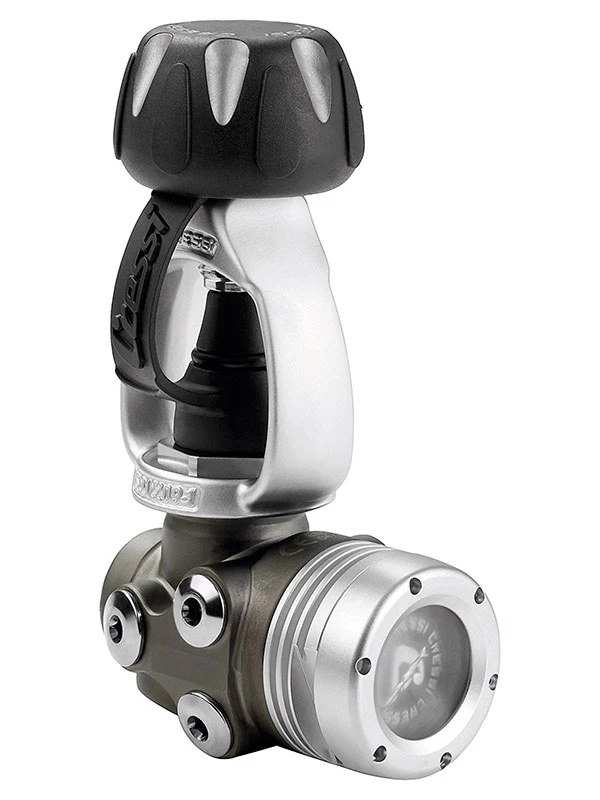

First Stage
The first stage stands out because the mechanism is arranged on an
axis perpendicular to the axis of air entry, creating a “T” shape.
The advantages of this particular design include a better
arrangement of the hoses and less space occupied (especially in SC
versions for cold water). What’s more, this makes it easy to
inspect and access the mechanism to improve maintenance and
calibration operations. It uses a larger, high-efficiency conical
filter, and the valves are arranged more easily on the tank.

The metal body is protected on the surface by a special treatment
called PVD (Physical Vapor Deposition), which compared to
traditional chrome coatings is more resilient to the mechanical and
chemical wear caused by dives.

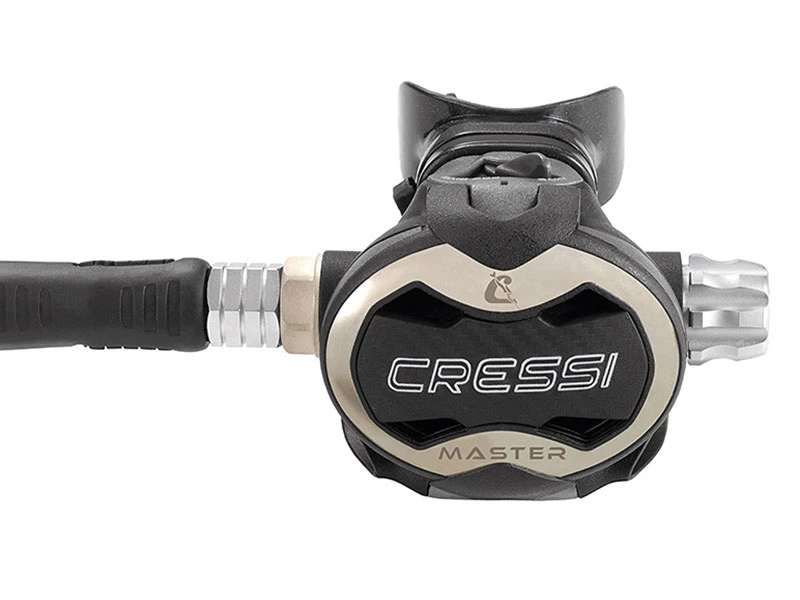

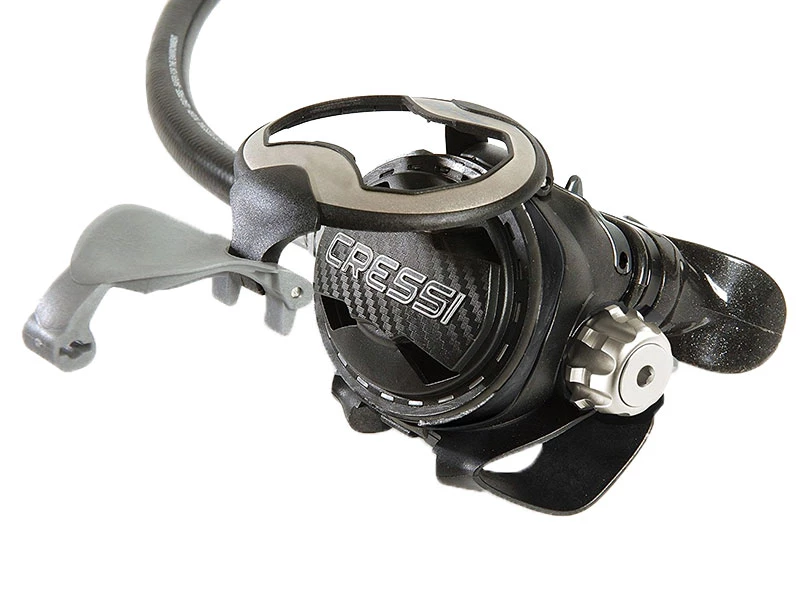

Second Stage
The Master Ellipse second stage has installed the exceptional and
proven Cressi balanced valve to ensure minimum inhalation effort.
This valve is paired with a body with metallic parts treated in

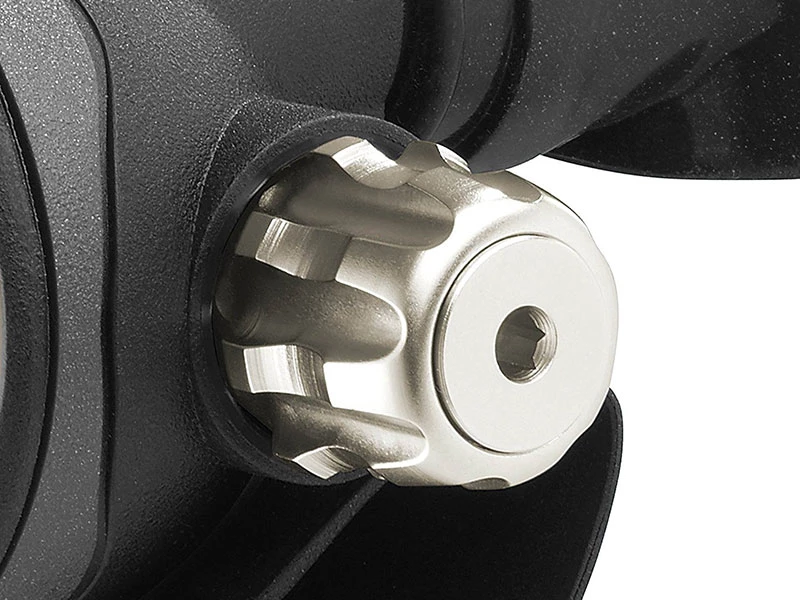

PVD. What’s more, the knob for adjusting inhalation effort is made
of a metallic material to guarantee reliability and resistance to
blows and scratches.

Certification EN250/2014 For Cold Water
The T10 Seal Chamber First Stage is environmentally sealed,
protecting it against icing in cold water and against contamination
from particulate matter in silty conditions. When paired with the
Master second stage, which includes an internal heat exchanger,
this regulator is an excellent choice for divers exploring the most
extreme cold water environments.

Cressi T10-SC Master Regulator Set Features:
First Stage

• Hyperbalanced diaphragm (Watertight chamber on T10-SC)
• 2 HP 7/16 UNF ports
• 4 MP 3/8 UNF ports
• Operating pressure: 300 bar (4350 psi) DIN Version, 232 bar
  (3365 psi) International version
• Calibration pressure: 10 bar
• Body coated with PVD process
• High-capacity conical filter in chemically nickel-plated
  spherical bronze
• Removable nozzle in AISI 316 steel
• Hyperbalancing system
• Anti-pressure drop pneumatic spring
• Stainless steel calibration spring with micropeening
  treatment
• Low-friction technopolymer slider shaft
• Body protection in polyurethane thermoplastic
• Quantity of air supplied: 4500 l/min
• Weight, INT version: 673 gr (720 gr T10-SC)

Second Stage

• Pneumatically balanced
• Adjustable Venturi
• Adjustable inhalation effort
• Patented elliptical diaphragm
• Patented low-friction lever
• Air delivery system without injector
• Adjuster knob coated with PVD process with dual OR
• Laser-etched titanium front piece
• Internal heat exchanger
• Cap opening with Cam-lock
• Noise-absorbing technopolymer body
• Removable technopolymer deflector
• Removable mechanics
• Weight without hose: 207 gr
